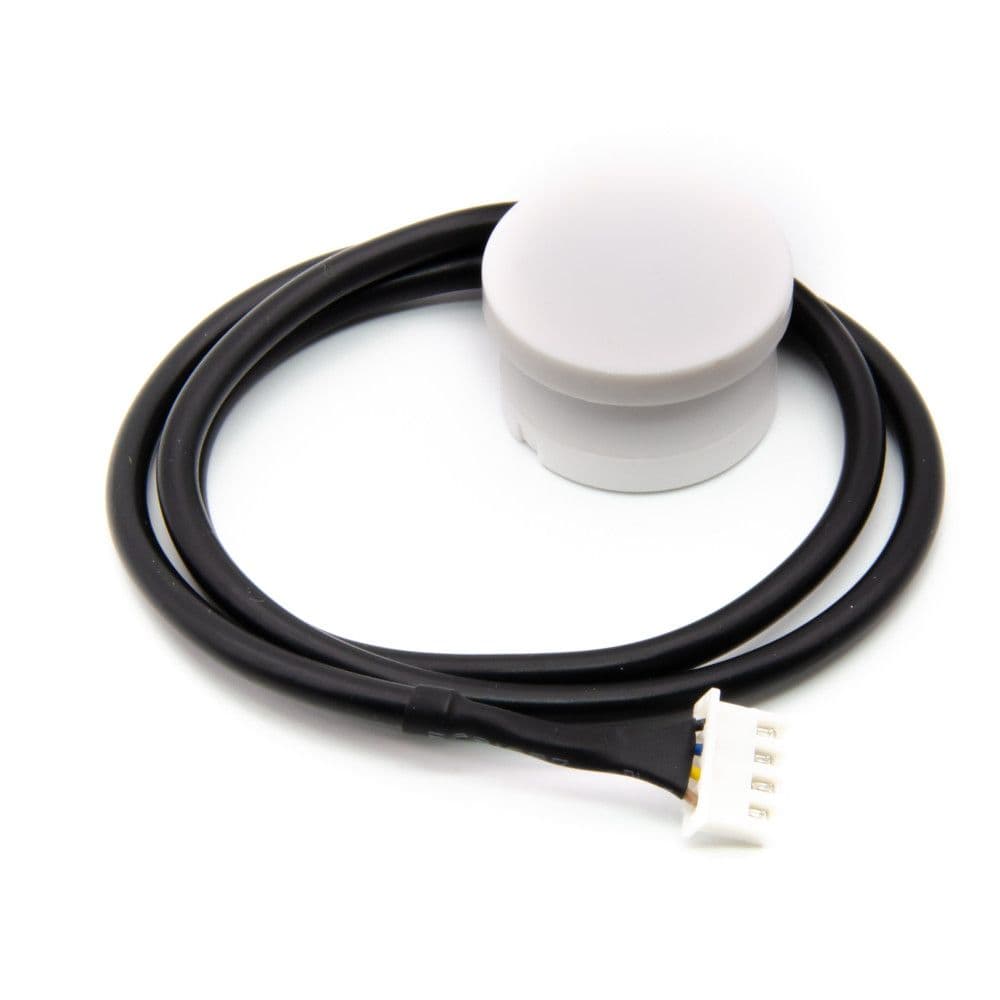

XKC-Y25-T12V Non-contact Digital Water / Liquid Level Sensor

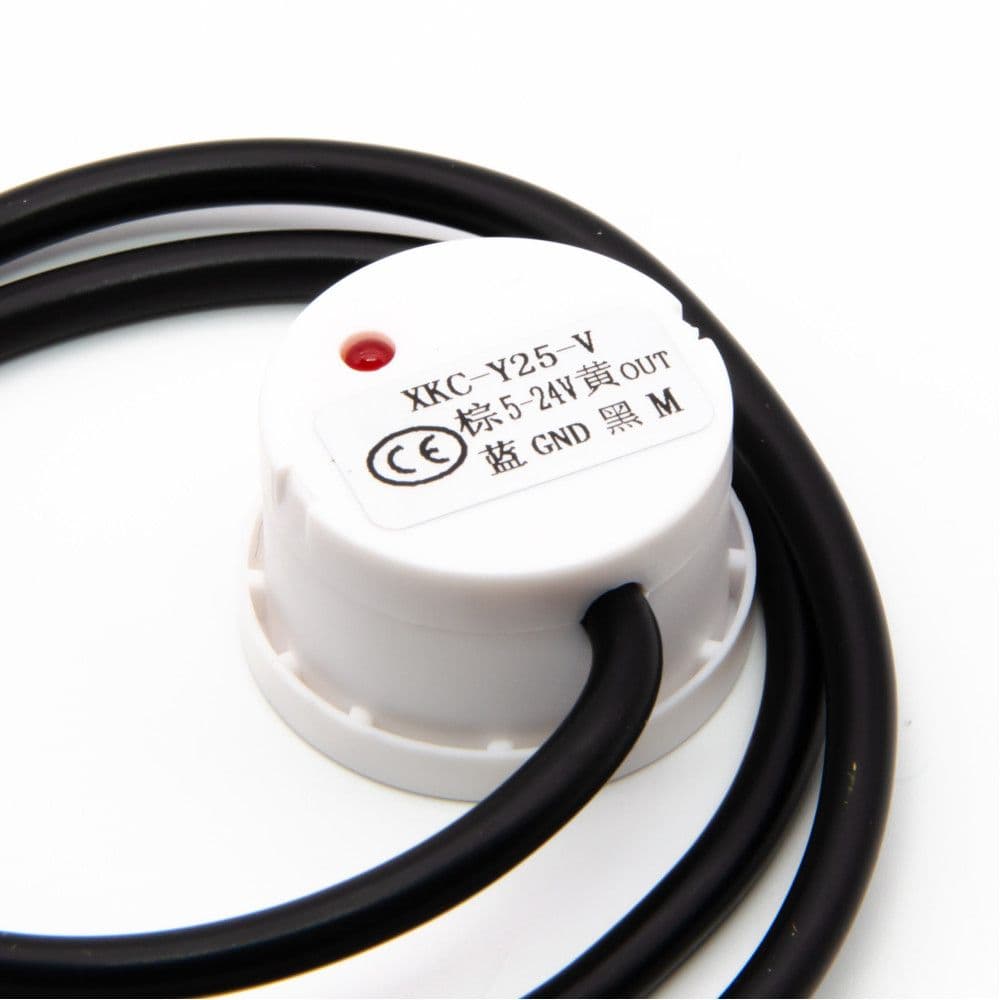

Description : This XKC-Y25-T12V is a non-contact water/liquid level sensor for Arduino. It uses advanced signal processing technology with a powerful chip (XKC-Y25-T12V), using a capacitive measuring principle, to achieve non-contact level detection. By non-contact measurement, the module is suitable for hazardous applications such as detecting toxic substances, strong acid, strong alkali, and all kinds of liquids in airtight containers under high pressure. The sensor cannot be used in metal containers, otherwise there are no special requirements for the liquid. The liquid sensor is easy to use and install. Connection Assignment XKC-Y25-V: VCC Brown Mode Black GND Blue Out Yellow Technical Details: Chip: XKC-Y25-T12V Not suitable for metallic containers Connecting plug: PH2.0 4P Interface: Gravity Digital Operating Voltage (InVCC): 5 to 24V DC Power Consumption: 5mA Output Voltage (High Level): InVCC Output Voltage (Low Level): 0V Output Current: 1 to 50mA Response Time: 500ms Operating Temperature: 0 to 105°C Material: ABS Sensor Diameter: 23mm Sensor Height: 16.9mm Weight: 21g
