Description :

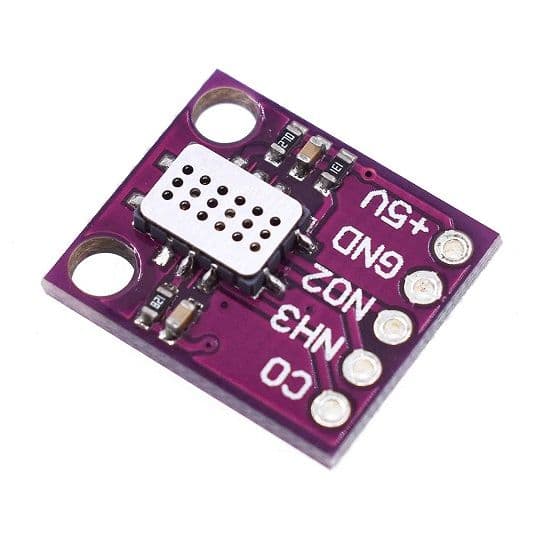

The MICS-6814 Air Quality Sensor , also known by its technical name as the MICS-6814 Gas Sensor, is a safety device used to monitor air quality in different environments in conjunction with microcontrollers, including Arduino, Raspberry Pi , PIC, among others.
It has the ability to accurately detect the concentration of Carbon Monoxide (CO), Nitrogen Dioxide (NO2), Ammonia (NH3), Methane (CH4), Propane (C3H8), Ethanol (C2H5OH), Hydrogen (H2), and Isobutane (C4H10) in a given environment, since these gases are extremely toxic to humans, acting on the following scales: 1 – 1000ppm (CO), 0.05 – 10ppm (NO2), 1 – 500ppm (NH3), > 1000ppm (CH4),> 1000ppm (C3H8), 10-500ppm (C2H5OH), 1-1000ppm (H2) and> 1000ppm (C4H10).
A major differential of this sensor model is the ability to measure / monitor the concentration of three gases simultaneously, having unique channels for each of them (Carbon Monoxide (CO), Nitrogen Dioxide (NO2) and Ammonia (NH3).
Applications:
The sensor is ideal for monitoring air intakes in industries, equipment, air conditioning, offices, schools, homes, and can be used in any environment to provide greater security for those who are monitored, especially in large cities where air pollution reaches alarming levels and dangerous to health.
FEATURES:
– air Quality Sensor MICS-6814; – Gas Sensor MICS-6814; – Compatible with Arduino, Raspberry Pi, PIC and others
– Detects Carbon Monoxide, Nitrogen Dioxide, Ammonia, Methane, Propane, Ethanol, Hydrogen and Iso-butane
– Keeps environments monitored and safe
– It sends signals to the platform of prototyping, that will be programmed to act of determined way before the happened thing
– Holes for fixing
– Long service life and reliable stability
– Rapid response and recovery
– Allows monitoring of 3 gases simultaneously (Carbon Monoxide, Nitrogen Dioxide and Ammonia)
– Provides greater security
SPECIFICATIONS:
– Model: MICS-6814
– Voltage: DC 5V
– Stimulus Signal: Carbon Monoxide, Nitrogen Dioxide, Ammonia, Methane, Propane, Ethanol, Hydrogen and Isobutane
– Detection scale: 1 – 1000ppm (CO), 0.05 – 10ppm (NO2), 1 – 500ppm (NH3),> 1000ppm (CH4),> 1000ppm (C3H8), 10-500ppm (C2H5OH), 1 – 1000ppm (H2) and> 1000ppm (C4H10)
– Dimensions (LxWxH): ~ 17x14x3mm
– Weight: 1.5 grm
