Description

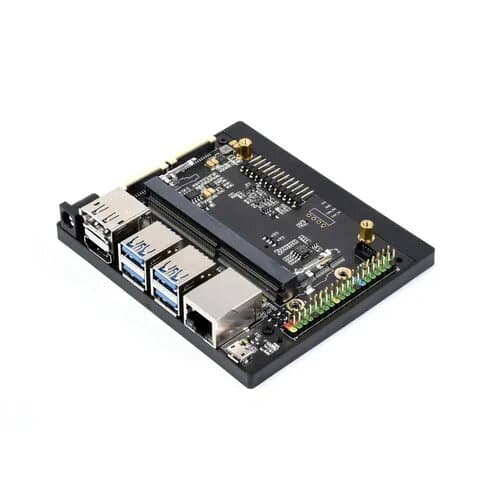

Jetson Xavier NX AI Development Board - 8GB (US Plug)
Powerful 21 TOPS AI performance for advanced applications
Compact form factor with 260-pin SO-DIMM connector
Versatile video encoding and decoding capabilities
Supports up to 6 cameras and advanced computer vision
Flexible power options: 10W, 15W, and 20W
The Jetson Xavier NX AI Development Board - 8GB (US Plug) is a powerful and versatile computing platform designed for advanced AI applications.
With a compact form factor of 45 mm x 69.6 mm and a 260-pin SO-DIMM connector, this development board is ideal for integrating into a wide range of devices and systems.
The Jetson Xavier NX boasts an impressive AI performance of 21 TOPS, driven by a 384-core NVIDIA Volta™ GPU with 48 Tensor Cores.
The 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU, featuring 6MB L2 and 4MB L3 cache, ensures efficient processing capabilities.
The board is equipped with 8 GB 128-bit LPDDR4x memory, providing a bandwidth of 59.7 GB/s, and 16 GB eMMC 5.1 storage for ample space to store applications and data.
Power options for the Jetson Xavier NX include 10W, 15W, and 20W, allowing for flexibility in energy consumption based on the requirements of the specific application.

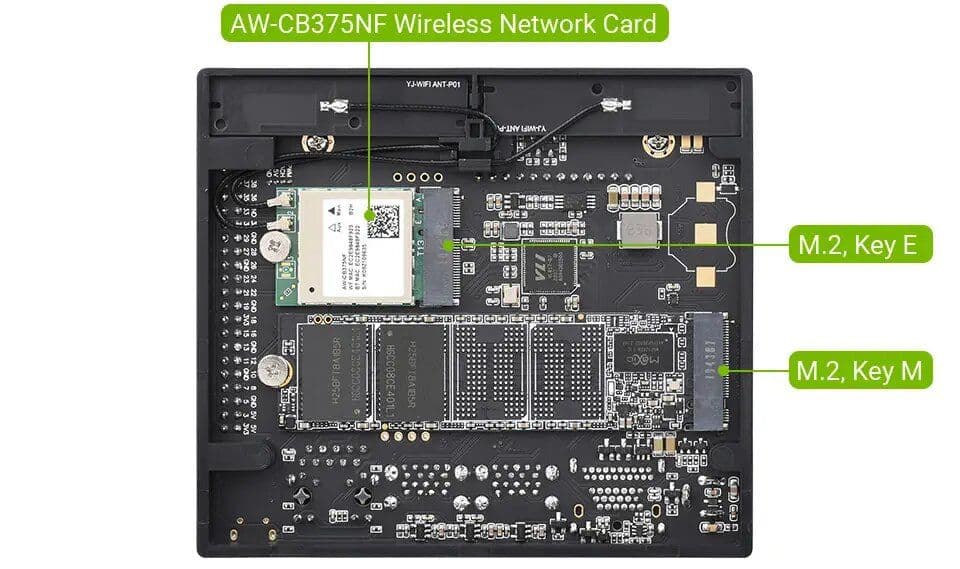

The board also features 1 x1 (PCIe Gen3) and 1 x4 (PCIe Gen4) PCIe slots, with a total bandwidth of 144 GT/s.
The Jetson Xavier NX supports up to 6 cameras (24 via virtual channels) with 14 lanes of MIPI CSI-2, D-PHY 1.2 (up to 30 Gbps).
Video encoding capabilities include 2x 4K60, 4x 4K30, 10x 1080p60, and 22x 1080p30 (H.265), as well as 2x 4K60, 4x 4K30, 10x 1080p60, and 20x 1080p30 (H.264).
Video decoding capabilities include 2x 8K30, 6x 4K60, 12x 4K30, 22x 1080p60, and 44x 1080p30 (H.265), as well as 2x 4K60, 6x 4K30, 10x 1080p60, and 22x 1080p30 (H.264).

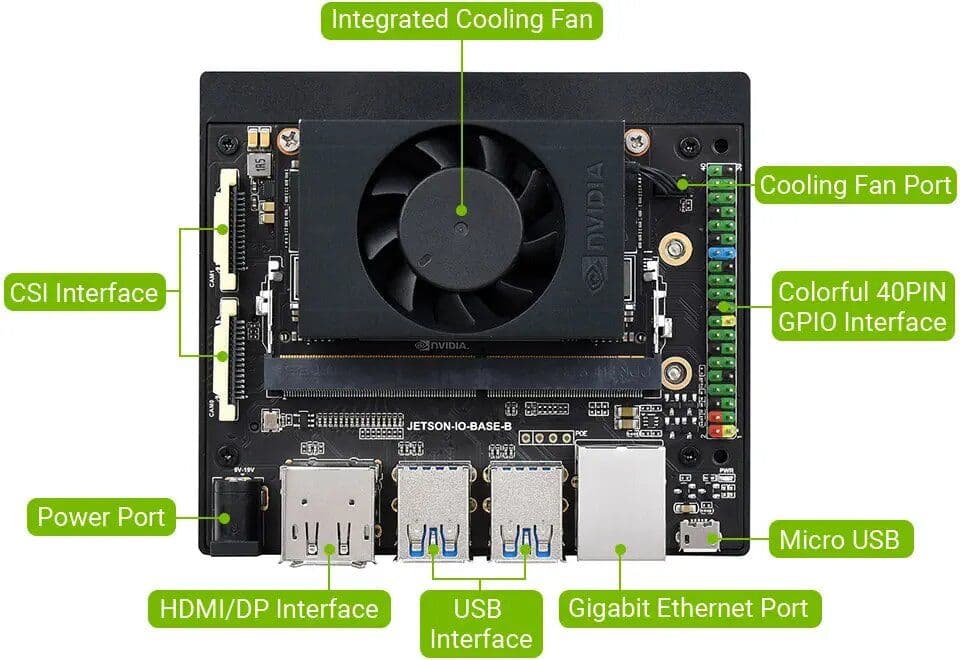

The board features 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 display outputs, 2x NVDLA Engines for deep learning acceleration, and 2x PVA vision accelerators for advanced computer vision applications.
Networking capabilities include 10/100/1000 BASE-T Ethernet for seamless connectivity.
Experience the power and versatility of the Jetson Xavier NX AI Development Board - 8GB (US Plug) for your next AI project.
