ajax wireless remote control relay

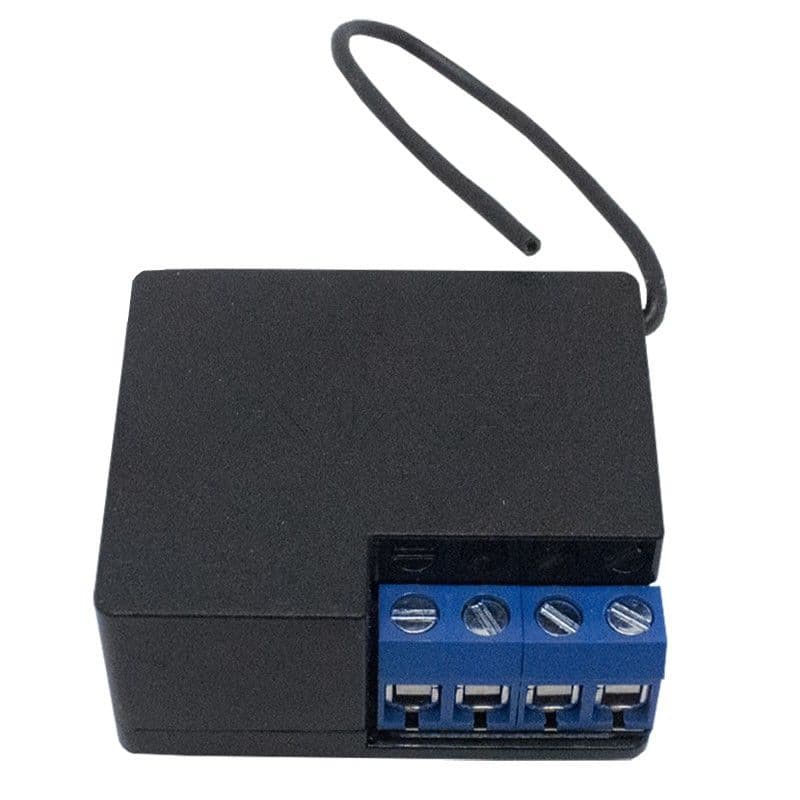

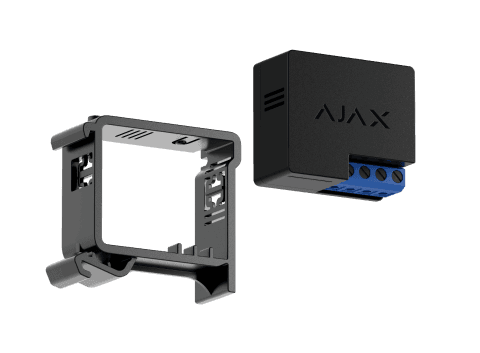

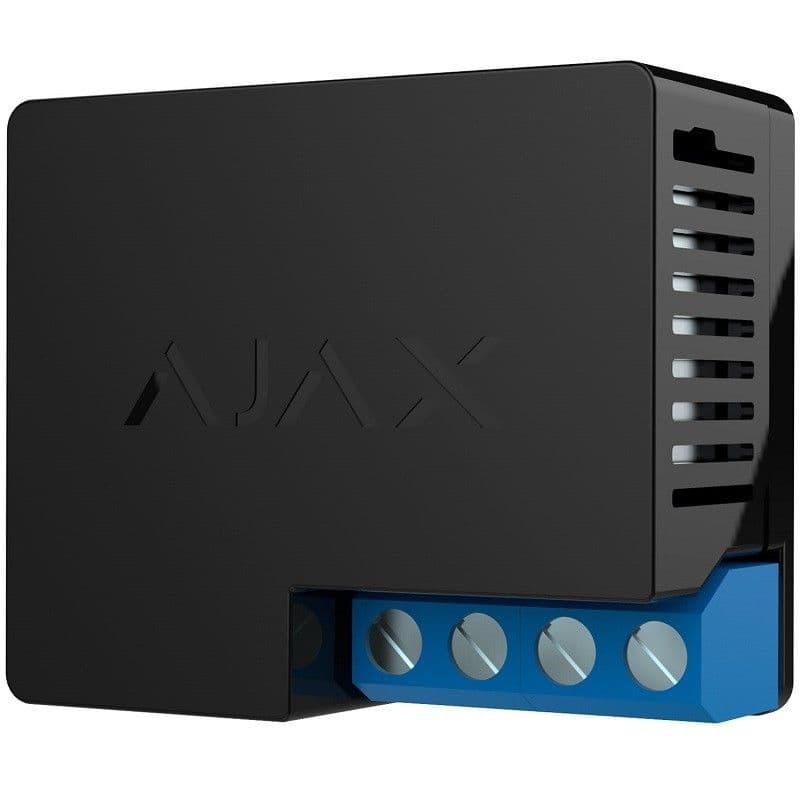

Relay Radio channel controller for remote control of low current equipment. It is used to activate electric locks, gates and swing gates, rolling shutters and blinds, and to restart modems and routers. Authentication to prevent forgery Jamming detection and communication channels encryption Protected from power surges and overheating With one click in the mobile app, the device switches domestic appliances on or off It switches off automatically during voltage surge and overheating Information on the voltage level is available in the mobile app Principle of operation The device controls electric power supply by means of relay, which closes and opens the dry contact. Features Operates from 7 - 24 V DC voltage sources. The dry contact is not galvanically connected to the device itself. Installation and set up The device is installed in junction boxes, distribution boards, and enclosures of switching units. Classification Radio channel relay unit Device type Wireless Installation method Into electric switchboard, junction box Compatibility Operates with all Ajax hubs, range extenders Actuating element Electromagnetic relay Relay service life 200,000 switch-ons Voltage protection Max — 36.5 V, min — 6.5 V Maximum load current 5A at 36V DC, 13A at 230V AC Maximum current protection No Maximum temperature protection > 65°C at the place of installation Electric power meter function No Energy consumption parameter check Voltage Power supply 7 - 24 V (DC only) Jeweller radio technology Communication range with central unit — up to 1,000 m in an open space Two-way communication between devices Operating frequencies — 868.0 - 868.6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Device scanning period — 12 - 300 s Operating temperature range From 0°С to +64°С Permissible humidity Up to 75% Protection class of body IP20 Anti-sabotage Protection against fraud Jamming detection Remote setting and testing + Dimensions 39 × 33 × 18 mm Weight 25 g Complete set Relay Installation set User's guide
