Overview

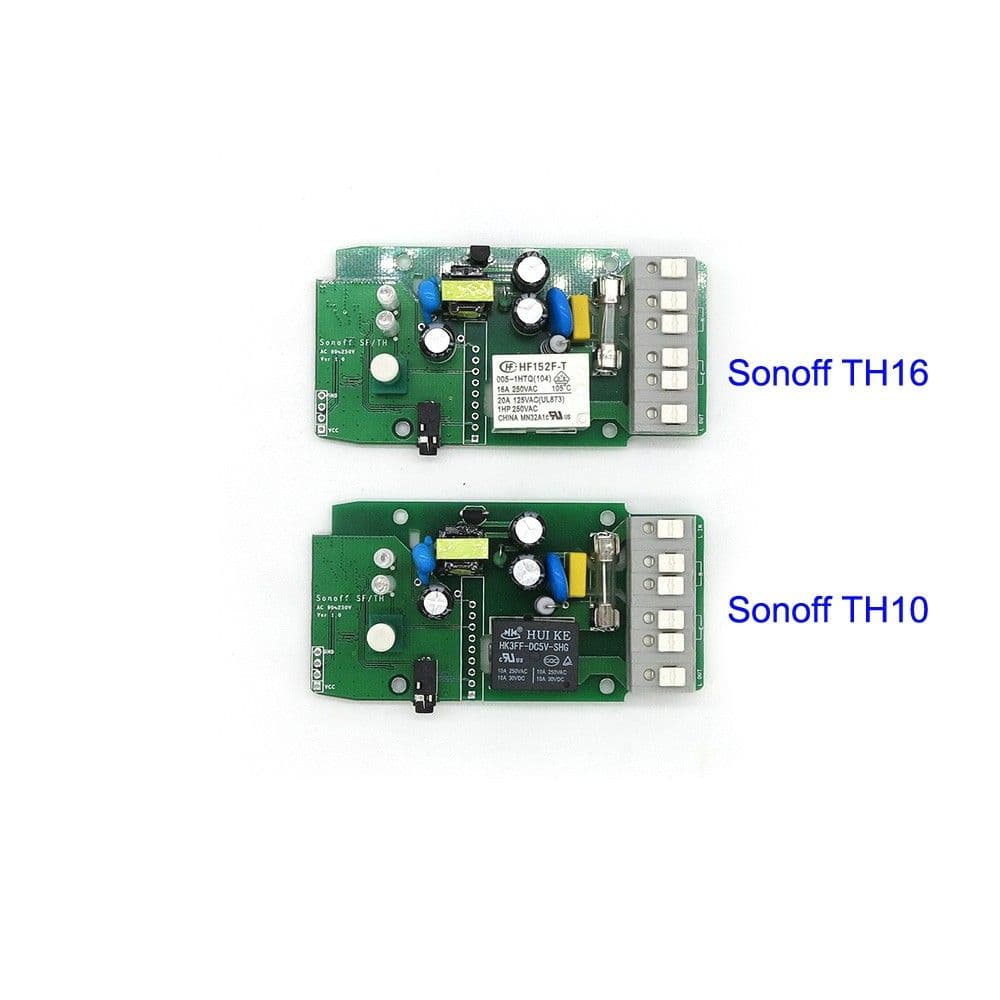

Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 16A.
Sonoff TH10/ TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of the environment falls within the range, it will automatically turn on or off the connected devices.
Sonoff TH10/ TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:
Si7021, AM2301, DS18B20, DHT11
Compare with other sensors, Si7021(wiki) is more accurate. It's highly recommended!
Note: the sensors are not in the package of Sonoff TH10 /TH16, you have to enter the number you want to order in the corresponding field.
The sensor should be plugged before power on. It is not advised to plug or unplug the sensor in power-on state. DS18B20 is waterproof, which measures temperature only. Other sensors can measure both temperature and humdity.
With the latest eWeLink app, users can create a series of simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be used to as a condition to trigger on/off other smart devices, such as Sonoff, Sonoff RF, Sonoff SV, S20 smart socket (see below pic). This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.
Useful Links:
User Manual for Sonoff TH WiFi Wireless Switch
Features
Supports tracking device status
Supports remote turn on/off connected appliance
Supports presetting temperature and humidity to turn on/off
Supports 8 enabled countdown/single/repeat timing tasks
Support checking real-time temperature and humidity
Support setting smart scene to trigger on/off other smart devices
Works with Amazon Echo, Echo Dot, Amazon Tap
Works with Google Home, Google Nest
Works with IFTTT
Specification
Input voltage: 90~ 250V AC
Input current: Max 10A /16A
Max. Power: 2200W(10A) /3500W(16A)
Humidity: 5%-90%RH, Non-condensing
Operating Temperature: 0ºC-40ºC(32°F-104°F)
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Dimension: 114*51*32 (mm)
Supported temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
Gang: 1
Certification: CE, RoHS, FCC

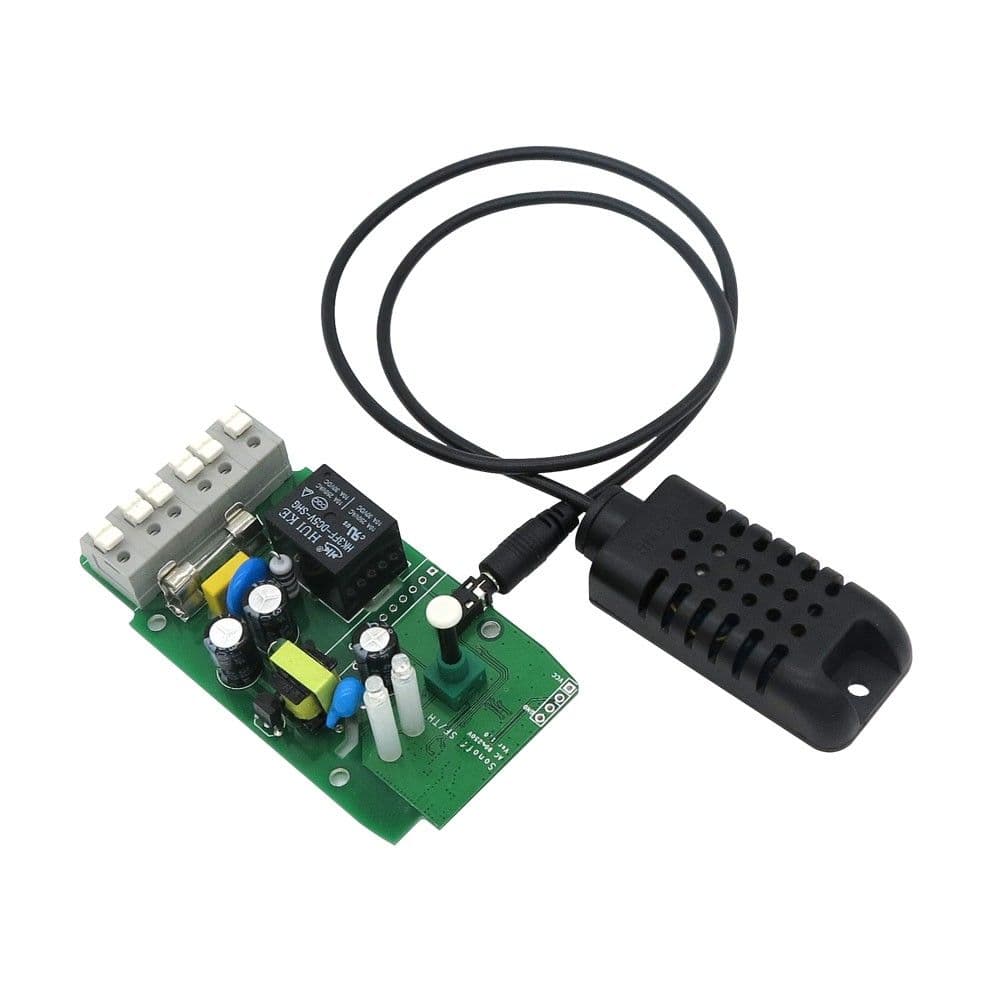

AM2301 Sensor
Temperature Measuring Range: -40℃~+80℃
Humidity Measuring Range: 0~99.9%RH
Power Supply: 3.3-5.2V DC (5V recommended)
Temperature Sensor Type: Resistive
Humidity Sensor type: Capacitive
Weight: 22g
Length: 0.5m
