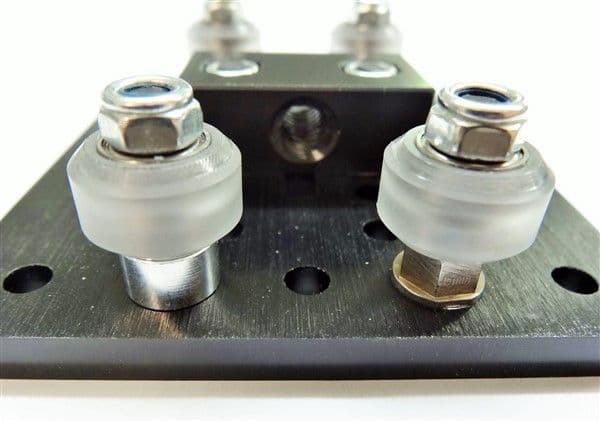

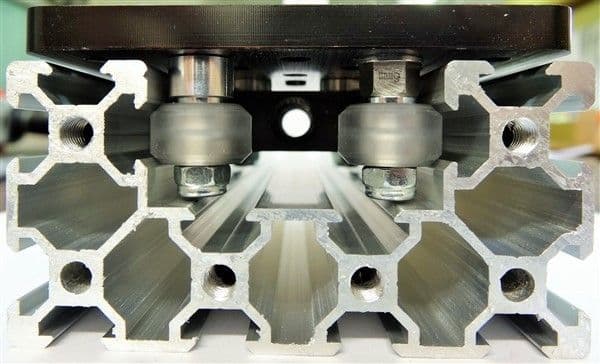

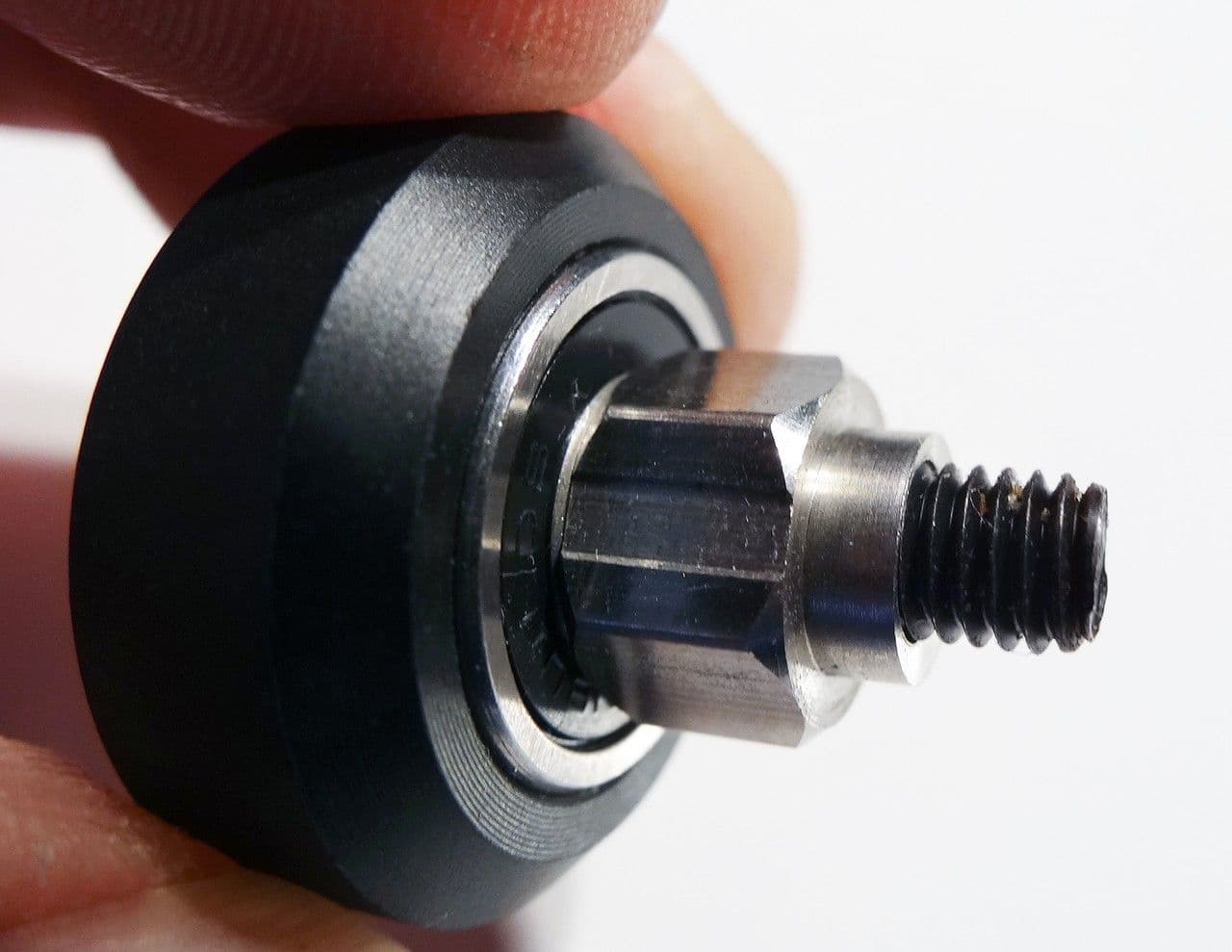

Eccentric Spacers are the perfect solution for creating a pre-load from the V-Wheels to the V-Slot™ rail.
They are added to one side of a set of wheels on a gantry plate.
The eccentrics give an aprox 0.79mm adjustmnet range allow for a very strong and scruce connection between the V rail and wheel.

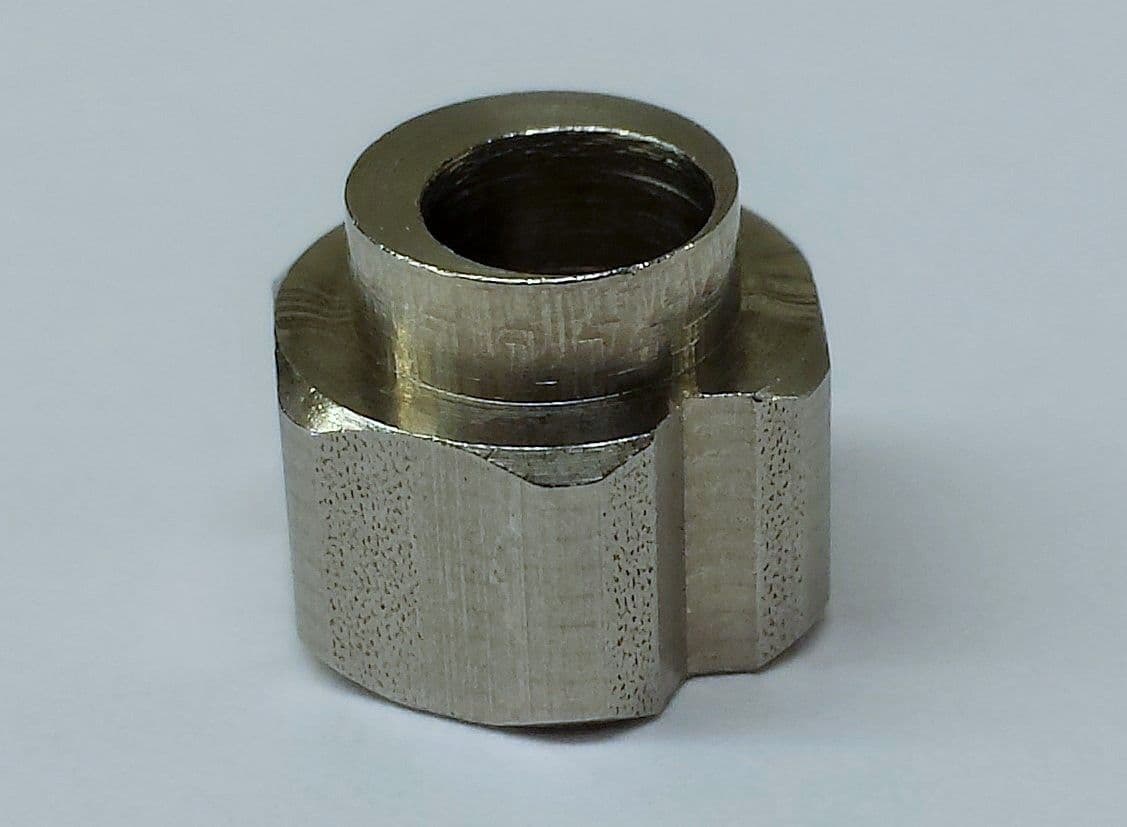

The OpenBuilds Part Store Eccentric Spacers comes with a divot on the outside which allows you to know at all times where the smallest part of the cam hole is.
Stainless Steel
8mm/10mm can size
6mm - 1/4" can height
Rim fits into a 7.12mm hole
5mm Bore
Quantity (1)
Adjustments are made with a 10mm wrench for the full size eccentrics and an 8mm wrench for the mini size eccentrics
Eccentric Spacers are the perfect solution for creating a pre-load from the V-Wheels to the V-Slot™ rail.
They are added to one side of a set of wheels on a gantry plate.
The eccentrics give an aprox 0.79mm adjustmnet range allow for a very strong and scruce connection between the V rail and wheel.
The OpenBuilds Part Store Eccentric Spacers comes with a divot on the outside which allows you to know at all times where the smallest part of the cam hole is.
Stainless Steel
8mm/10mm can size
6mm - 1/4" can height
Rim fits into a 7.12mm hole
5mm Bore
Quantity (1)
Adjustments are made with a 10mm wrench for the full size eccentrics and an 8mm wrench for the mini size eccentrics
