Description :

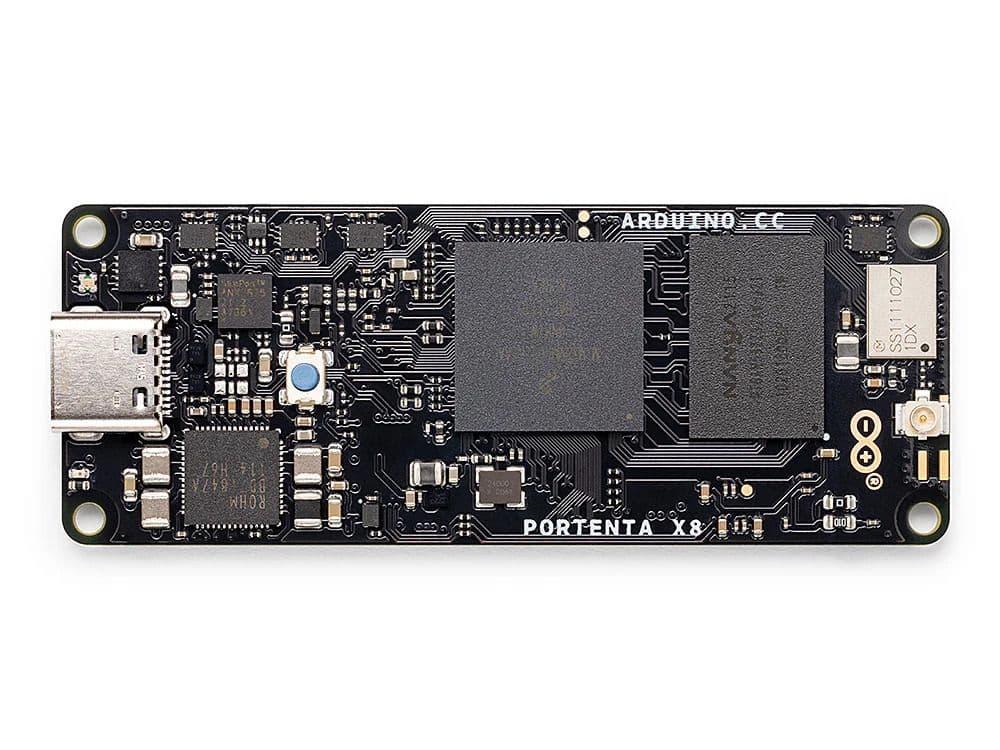

The Portenta X8 is an industrial-grade System on Module (SoM) with exceptional power, featuring a total of 9 cores for processing and artificial intelligence.
Two systems in one: Linux distribution and Arduino environment
Equipped with a NXP i.MX 8M Mini and a STM32H747XI
Compatible with IoT solutions and advanced industrial platforms
Contents

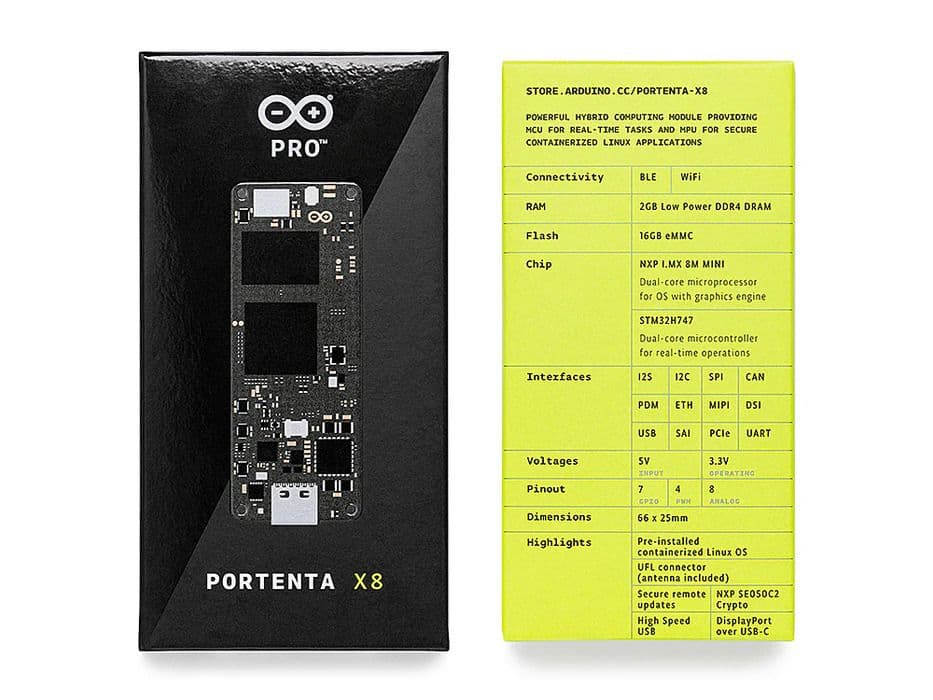

Card Arduino Portenta X8
Wi-Fi and Bluetooth antenna
Features
MICROPROCESSORS
NXP i.MX 8M Mini :
4 Cortex-A53 cores at 1.8 GHz
1 Cortex-M4 core at 400 MHz
STM32H747XI :
Cortex-M7 at 480 MHz
Cortex-M4 at 240 MHz
MEMORY
RAM: 2 GB DDR4
Storage: 16 GB eMMC Flash
CONNECTIVITY
Wi-Fi 802.11 b/g/n and Bluetooth 5.1 BLE/EDR (Murata 1DX module)
High-density interfaces: PCIe, USB, Gigabit Ethernet, UART, I2C, SPI, I2S, PWM
SECURITY
NXP SE050C2 chip for advanced encryption and secure storage
PSA and Arm SystemReady certified
INTERFACES
2 USB ports, microSD support, PCIe, Ethernet 10/100 Mbit/s
UFL connector for an external antenna
ENVIRONMENT AND DIMENSIONS
Operating temperature : -40°C to 85°C
Dimensions: 66 x 25 mm
Weight: 10.2 g
Useful resources
User's guide
Datasheet
Schematics
Pinout
Hardware
Programming
To program with Arduino, you can use Arduino software platforms:
, available for free download, or the
available online. In the Tools > Map menu, simply select "Arduino Portenta X8".
For advanced use, the command-line tool provides access to all libraries.
