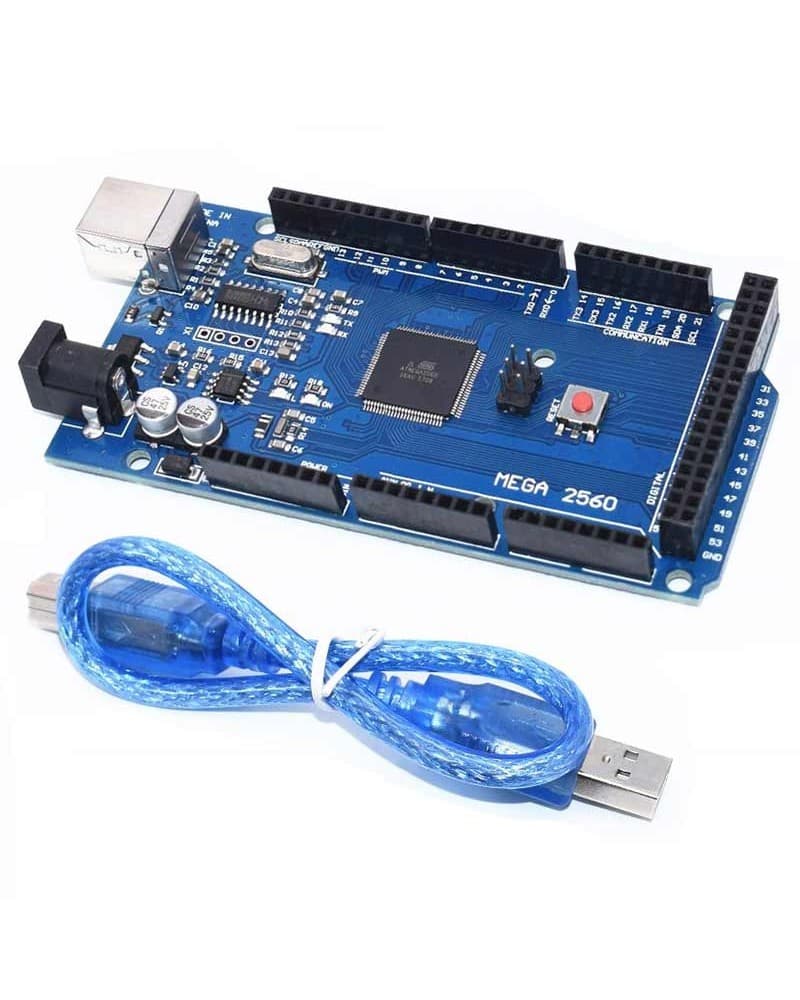

Arduino Mega 2560 R3 (Compatible)

Description : Universal Atmega2560 microcontroller module for use in prototypes and projects with microcontrollers. Compatible with the Arduino® Mega 2560 R3 design. It is a clone that was built according to the original scheme. The programming is done using the USB UART CH340 converter. You will need a USB A / B cable to communicate with the board . Parameters: Supply voltage: 5V (USB), 7-12V (power adapter) I / O pin voltage: 5V Arduino® Mega 2560 R3 bootloader installed USB-UART chip: CH340 Microcontroller: ATmega2560 Maximum clock frequency: 16 MHz SRAM memory: 8 kB Flash memory: 256 KB (8 KB is reserved for bootloader) EEPROM memory: 4 kB I / O Ports: 54 PWM outputs: 15 Number of analog inputs: 16 (channels of A / C converter) Serial interfaces: UART, SPI, I2C External interrupts Dimensions: 101 x 54 x 15 mm Goldpins soldered into the board Useful links: CH340 drivers Arduino® IDE software Module pinout Documentation of the Atmega2560
