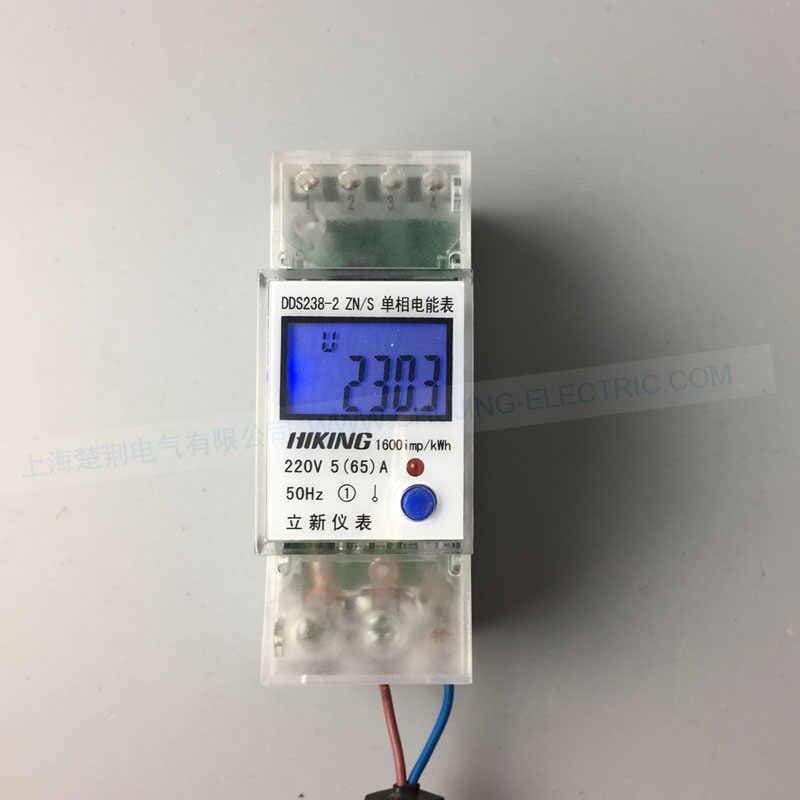

220V 230V 50HZ 60HZ voltage current DDSU666 ZN/S single phase
رمز المنتج: DZD004205
٨٬٠٠٠٫٠٠ د.ج.٩٬٣٠٢٫٣٣ د.ج.
Function:
1. Bule backlight
2. Show real voltage V
3. Show real current A
4. Show active power W
5. Show reactive power Var
6. Show power Factory COS
7. Show real Frequency Hz
8. Show Total Energy KWh (can't reset to zero)
9. Show Positive KWh (can't reset to zero)
10. Show reverse KWh (can't reset to zero)
11. Rest Energy KWh ( Can rest to zero)
12. RS485
THCHNICAL SPE CIFICATION
STANDARD IEC 62053-21(IEC61036) MODBUS-RTU
NOMINAL VOLTAGE L+N 230V 50HZ (0.8UN~1.15UN)
BASIC CURRENT(lb2) 5A
MAXIMUM CURRENT 65A,
MINIMUM CURRENT 0.02A
FREQUENCY 50Hz/60Hz
CONSUMPTION <2W/10VA
ACCURACY CLASS 1
DISPLAY 5+1 DIGITS
INTERFACE OPEN COLLECTOR OUTPUT(SO)
18~27V 27mA
IMPULSES IMPULSE LENGTH≥30ms
(as per DIN43684)
SERVICE TEMPERATURE LIMIT:-25°+70°
L.E.D 1 COLOUR
NORMAL OPERATION
PINK FLASHING RATE PROPORTIONAL TO LOAD
(1600imp/kwh )
INSTALLATION
MOUNTING DIN RAIL 35mm
PROTECTION IP20(TERMINAL COVERS INCLUDED)
DISPALY:
RS485 COMMUNICATION BUAD RATE:4800 bps
PROTOCOL: MODBUS OR DL/T645-2007
BACK UP(record the date, when power off)
63A type MCB maximum
WARRANTY
Warranty is 24 month
It is void if seal is removed/damaged.
WIRING DIAGRAM
Function:
1. Bule backlight
2. Show real voltage V
3. Show real current A
4. Show active power W
5. Show reactive power Var
6. Show power Factory COS
7. Show real Frequency Hz
8. Show Total Energy KWh (can't reset to zero)
9. Show Positive KWh (can't reset to zero)
10. Show reverse KWh (can't reset to zero)
11. Rest Energy KWh ( Can rest to zero)
12. RS485
THCHNICAL SPE CIFICATION
STANDARD IEC 62053-21(IEC61036) MODBUS-RTU
NOMINAL VOLTAGE L+N 230V 50HZ (0.8UN~1.15UN)
BASIC CURRENT(lb2) 5A
MAXIMUM CURRENT 65A,
MINIMUM CURRENT 0.02A
FREQUENCY 50Hz/60Hz
CONSUMPTION <2W/10VA
ACCURACY CLASS 1
DISPLAY 5+1 DIGITS
INTERFACE OPEN COLLECTOR OUTPUT(SO)
18~27V 27mA
IMPULSES IMPULSE LENGTH≥30ms
(as per DIN43684)
SERVICE TEMPERATURE LIMIT:-25°+70°
L.E.D 1 COLOUR
NORMAL OPERATION
PINK FLASHING RATE PROPORTIONAL TO LOAD
(1600imp/kwh )
INSTALLATION
MOUNTING DIN RAIL 35mm
PROTECTION IP20(TERMINAL COVERS INCLUDED)
DISPALY:
RS485 COMMUNICATION BUAD RATE:4800 bps
PROTOCOL: MODBUS OR DL/T645-2007
BACK UP(record the date, when power off)
63A type MCB maximum
WARRANTY
Warranty is 24 month
It is void if seal is removed/damaged.
WIRING DIAGRAM
