Features:
Brushed DC motor reversing control, overload stall overcurrent shutdown protection is also available Walking card use motor overload shutdown in place,Instead of stroke limit switches occasions.

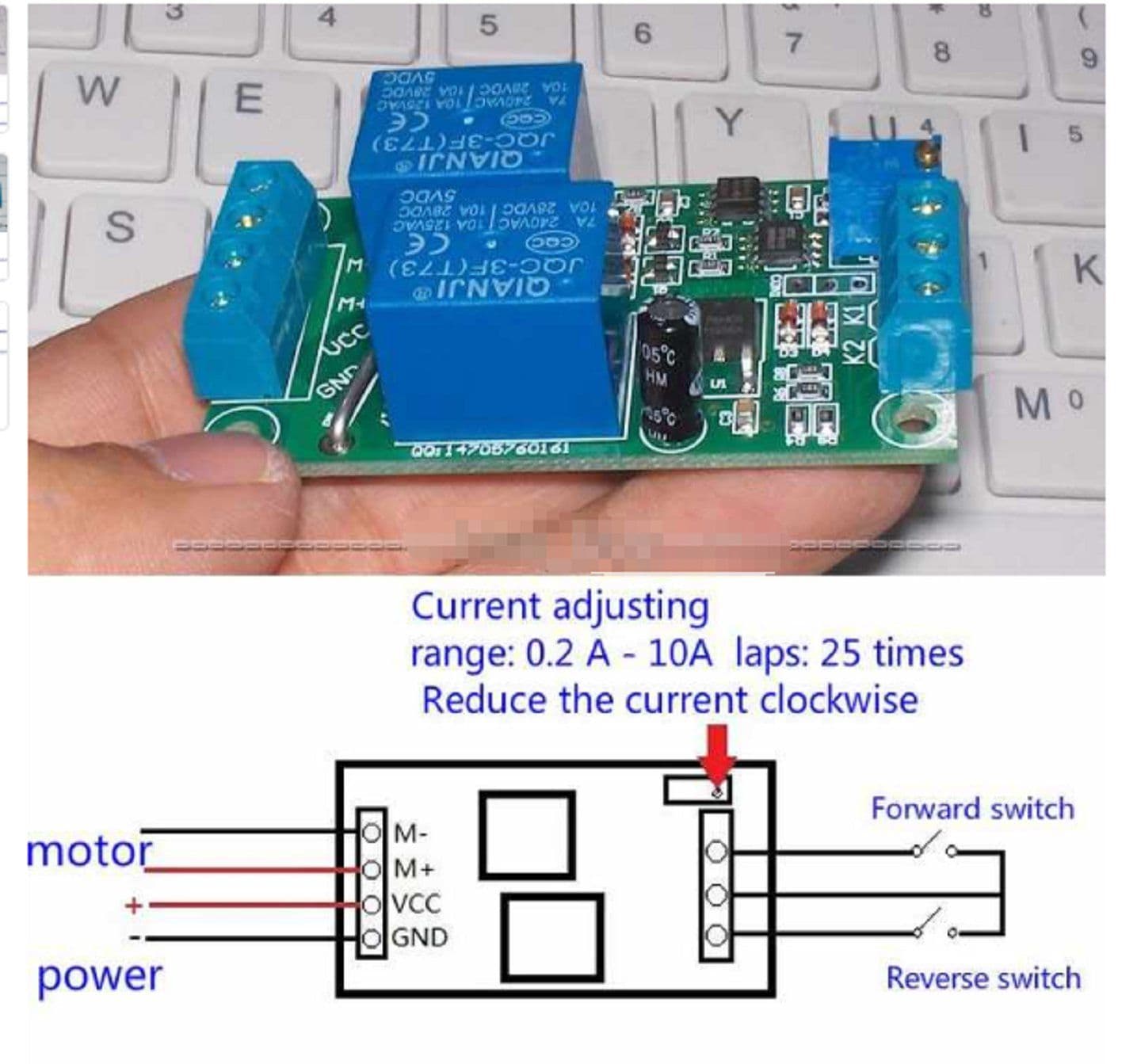

Protection current size can be on the board of precision potentiometer knob to adjust, adjustable limits 0.2A-10AIf the pursuit of stability and durabilityRecommended to use in the current range 1A ~ 6A.
Operating voltage: 12V
This protection module has the following A, B two operating modes:
In K1 K2 jog switch installed to illustrate the difference between the lower A, B (so-called inching switch, press to turn on, let go off)
Function A:
1, K1 K2 control the motor forward, reverse, press and hold K1 forward, release the stop; press and hold K2 reverse, release the stop;
2, during operation if the motor stall or overload, the motor stops running; this time to re-release the switch is pressed again before they can resume operation.
Function B:
1, K1 K2 switch controls both directions. Simply tap a switch to switch running or stopped
2, the motor in either direction during operation, trigger any button to stop working; or the motor overload overcurrent stop running forward or reverse the trigger again, the motor back into operation, running direction in accordance with the corresponding button.
Two modes of operation by shorting two pads achieve R3R3 bit short circuit for the function A. R3 bit off the function B.
Only adjust the appropriate current value can be achieved stall overload protection, transfer of small start immediately on the power, turn up the stall UPS does not work.
