Product description
Used widely in hopper scales, platform scales, platform balance, ; belt scales and other electronic weighing devices.
Product features

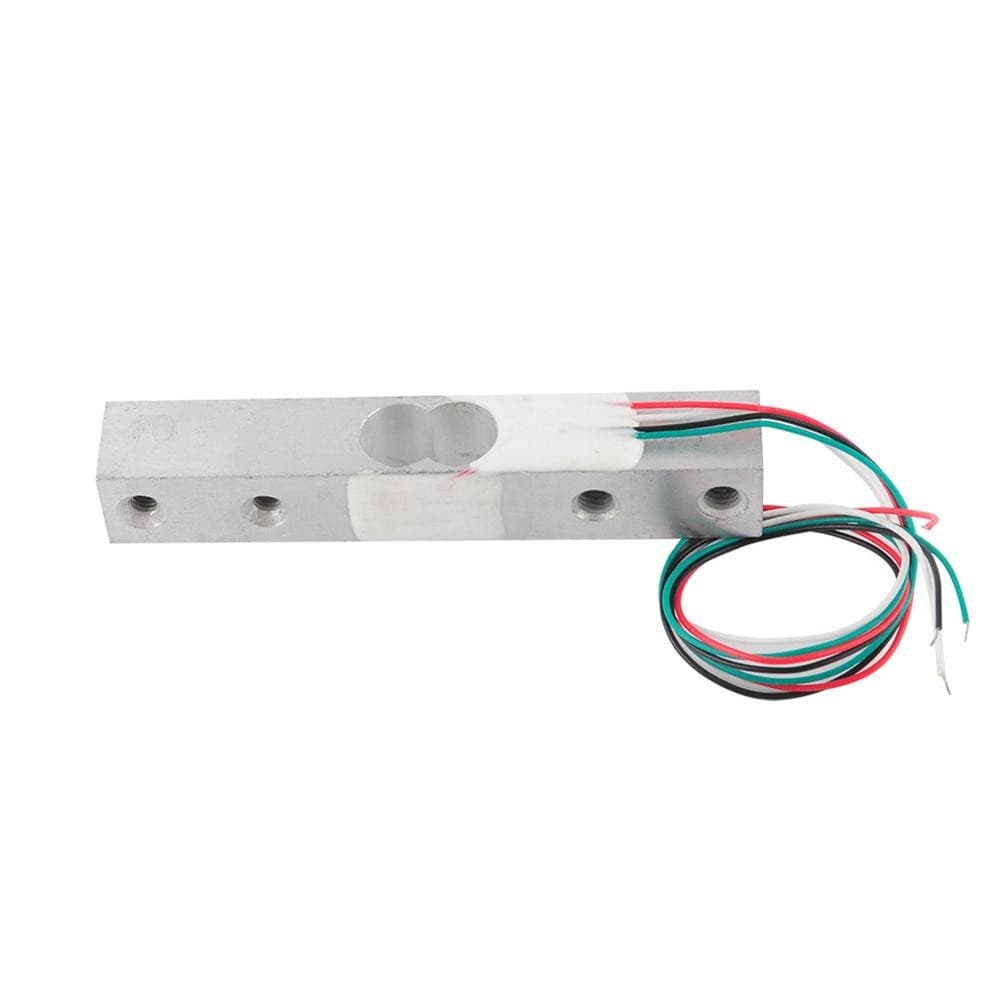

Product name : load Cell
model : yzc-131
rated load : 10kg
rated output : 1. 2卤0. 1mV/V
Input resistance : 1066 卤 20 Ohm
output resistance : 1000 卤 20 Ohm
insulation resistance : 2000 Ohm
working temperature : -20°c~+65°c
Compensated temperature range : -10°c~+50°c
Safety overload : 120 percent F. S
recommend excitation Voltage : DC 5V
max excitation Voltage : DC 10V
Total Size : 75 x 12. 5 x 12. 5mm 3" x 0. 5" x 0. 5"(L*w*t)
thread diameter : 3. 4mm / 0. 12"
cable Length : 150mm/ 6' '
material : aluminum alloy
Color : Silver Tone
weight : 27G
Product description
Used widely in hopper scales, platform scales, platform balance, ; belt scales and other electronic weighing devices.
Product description
Used widely in hopper scales, platform scales, platform balance, ; belt scales and other electronic weighing devices.
Product features
Product name : load Cell
model : yzc-131
rated load : 10kg
rated output : 1. 2卤0. 1mV/V
Input resistance : 1066 卤 20 Ohm
output resistance : 1000 卤 20 Ohm
insulation resistance : 2000 Ohm
working temperature : -20°c~+65°c
Compensated temperature range : -10°c~+50°c
Safety overload : 120 percent F. S
recommend excitation Voltage : DC 5V
max excitation Voltage : DC 10V
Total Size : 75 x 12. 5 x 12. 5mm 3" x 0. 5" x 0. 5"(L*w*t)
thread diameter : 3. 4mm / 0. 12"
cable Length : 150mm/ 6' '
material : aluminum alloy
Color : Silver Tone
weight : 27G
Product description
Used widely in hopper scales, platform scales, platform balance, ; belt scales and other electronic weighing devices.
